| Image |
Part No. |
RoHS/Reach |
Package |
Logic (Output) |
Supply Voltage(s) |
Frequency |
 |
TX-U
 |
Compliant |
2.0 X 1.6 Ceramic
4 Pad SMD |
Clipped Sinewave |
1.8V, 2.5V
2.8V,3.0V,3.3V |
13.000MHz ~ 52.000MHz |
 |
TX-O
|
Compliant |
2.5 X 2.0 Ceramic
4 Pad SMD |
Clipped Sinewave |
2.5V,2.8V, 3.0V, 3.3V |
16.000MHz ~ 26.000MHz |
 |
TX-N
|
Compliant |
2.5 X 2.0 Ceramic
4 Pad SMD |
Clipped Sinewave |
1.8V, 2.5V, 2.8V |
13.000MHz ~ 52.000MHz |
 |

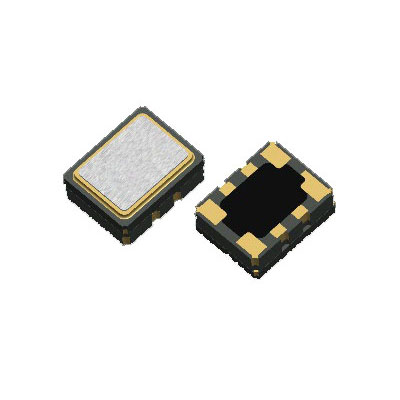

TX-L
|
Compliant |
3.2 X 2.5 Ceramic
4 Pad SMD |
CMOS
Clipped Sinewave |
1.8V, 2.5V
2.8V, 3.0V, 3.3V |
4.000MHz ~ 54.000MHz |
 |

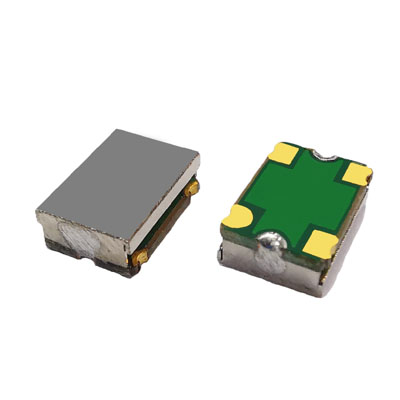

TX-M
|
Compliant |
3.2 X 2.5 Ceramic
4 Pad SMD
(Analog Compensation) |
Clipped Sinewave |
1.8V, 2.5V
2.8V, 3.0V, 3.3V |
16.000MHz ~ 26.000MHz |
 |
TX-Q
|
Compliant |
3.2 X 2.5 Ceramic
4 Pad SMD |
CMOS |
1.8V, 2.5V
2.8V, 3.0V, 3.3V |
4.000MHz ~ 54.000MHz |
 |
TFC5
|
Compliant |
5.0 X 3.2 Ceramic
4 Pad SMD |
CMOS
Clipped Sinewave |
3.3V |
10.000MHz ~ 40.000MHz |
 |
TX-J
|
Compliant |
5.0 X 3.2 Ceramic
4 Pad SMD |
CMOS
Clipped Sinewave |
3.3V |
10.000MHz ~ 40.000MHz |
 |
TE-J
|
Compliant |
5.0 X 3.2 Epoxy
4 Pad SMD |
CMOS
Clipped Sinewave |
1.8V, 2.5V, 3.3V |
13.000MHz ~ 52.000MHz |
 |
TX-T
|
Compliant |
5.0 X 3.2 Ceramic
4 Pad SMD |
CMOS
Clipped Sinewave |
1.8V, 2.5V, 2.8V
3.0V, 3.3V |
4.000MHz ~ 54.000MHz |
 |
TFC
|
Compliant |
7.0 X 5.0 Ceramic
SMD |
CMOS
Clipped Sinewave |
3.3V |
5.000MHz ~ 40.000MHz |
 |
TE-S
|
Compliant |
7.0 X 5.0 Epoxy
4 Pad SMD |
CMOS
Clipped Sinewave |
1.8V, 2.5V, 3.3V |
10.000MHz ~ 40.000MHz |
 |
TXCS
|
Compliant |
7.0 X 5.0 Ceramic
SMD |
LVCMOS
Clipped Sinewave |
3.3V |
10.000MHz ~ 16.376MHz |
 |
TX-K
|
Compliant |
7.0 X 5.0 Ceramic
4 Pad SMD |
CMOS
Clipped Sinewave |
2.5V, 3.3V |
5.000MHz ~ 52.000MHz |
 |
TX-P
|
Compliant |
7.0 X 5.0 Ceramic
4 Pad SMD |
CMOS
Clipped Sinewave |
3.3V |
5.000MHz ~ 40.000MHz |
 |
TX-S
|
Compliant |
7.0 X 5.0 Ceramic
SMD |
CMOS
Clipped Sinewave |
3.3V |
5.000MHz ~ 50.000MHz |
 |
TX-SB
|
Compliant |
7.0 X 5.0 Ceramic
SMD |
Clipped Sinewave |
3.3V |
10.000MHz ~ 27.000MHz |
 |
TX-R
|
Compliant |
7.0 X 5.0 Ceramic
4 Pad SMD |
CMOS |
3.3V |
1.250MHz ~ 156.250MHz |
 |
TX-V
|
Compliant |
7.0 X 5.0 Ceramic
SMD |
CMOS
Clipped Sinewave |
3.3V |
5.000MHz ~ 40.000MHz |
 |
TX-A
|
Compliant |
14 Pin DIP Through hole
4.5mm Height |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
|
TX-AL
|
Compliant |
14 Pin DIP Through hole
4.5mm Height |
LVDS
LVPECL |
3.3V, 5.0V |
750kHz ~ 800.000MHz |
 |
TX-B
|
Compliant |
14 Pin DIP Through hole
8.5mm Height |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
|
TX-BL
|
Compliant |
14 Pin DIP Through hole
8.5mm Height |
LVDS
LVPECL |
3.3V, 5.0V |
750kHz ~ 800.000MHz |
 |
TX-C
|
Compliant |
20.0 X 20.0
DIP Through hole |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
 |
TX-D
|
Compliant |
14.3 X 8.7 FR4 PCB
4 Pad SMD |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
 |
TX-D6
|
Compliant |
14.3 X 8.7 FR4 PCB
6 Pad SMD |
CMOS / TTL
LVDS / LVPECL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
 |
TX-E
|
Compliant |
18.3 X 11.7 PCB SMD |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
|
TX-EL
|
Compliant |
18.3 X 11.7 PCB SMD |
LVDS
LVPECL |
3.3V, 5.0V |
750kHz ~ 800.000MHz |
 |
TX-F4
|
Compliant |
11.4 X 9.8 PCB
4 Pad SMD |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
 |
TX-F6
|
Compliant |
11.4 X 9.8 PCB
6 Pad SMD |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
 |
VTXLN
|
Compliant |
11.4 X 9.6 PCB
4 Pad SMD
-150dBC/Hz@1kHz |
HCMOS |
3.3V, 5.0V |
10.000MHz ~ 20.000MHz |
 |
TX-G
|
Compliant |
11.4 X 11.6 PCB
Gullwing SMD |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1.250MHz ~ 50.000MHz |
 |
TX-H
|
Compliant |
14 Pin DIP
Hermetic sealed
Through hole |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
|
TFL
|
Compliant |
14 Pin DIP
Hermetic sealed
Through hole |
LVDS
LVPECL |
3.3V, 5.0V |
750kHz ~ 800.000MHz |
 |
THH
|
Compliant |
8 Pin DIP
Hermetic sealed
Through hole |
CMOS / TTL
CSW / SW |
3.3V, 5.0V |
1kHz ~ 800.000MHz |
|
THL
|
Compliant |
8 Pin DIP
Hermetic sealed
Through hole |
LVDS
LVPECL |
3.3V, 5.0V |
750kHz ~ 800.000MHz |
|
|
|
|
|
|
