SMD POWER INDUCTOR
Image Series Inductance Range (µH) Package Size (mm) RoHS/Reach

TANB1305F

 1.0 ~ 3300 13.0 X 9.50 X 5.21 Compliant

TANB1807F

 1.0 ~ 1000 18.60 X 15.30 X 7.11 Compliant

TP0403BF

 1.0 ~ 820 4.50 X 4.00 X 3.20 Compliant

TP0705BF

 1.0 ~ 470 7.80 X 7.00 X 5.00 Compliant

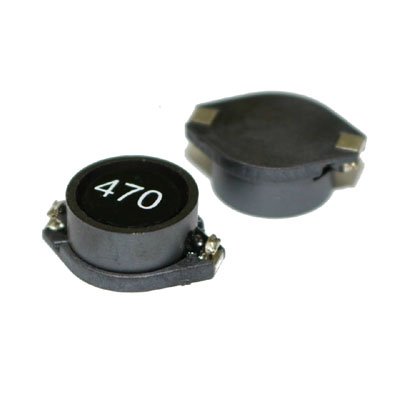

TPOS3316F

 1.0 ~ 1000 13.0 X 9.5 X 5.21 Compliant

TPQH201610TF-R

 0.24 ~ 10 2.0 X 1.6 X 1.0 Compliant

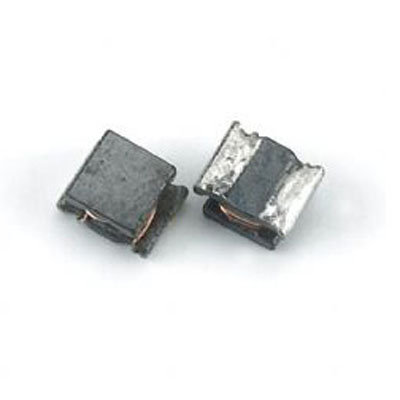

TPQH252012HF-R

 0.47 ~ 15 2.5 X 2.0 X 1.2 Compliant

TPRH10D50F

 1.5 ~ 1000 10.10 X 10.00 X 5.10 Compliant

TPRH10D40F

 1.5 ~ 330 10.10 X 10.0 X 3.8 Compliant

TPRH1207F

 4.7 ~ 1000 12.0 X 12.0 X 8.0 Compliant

TPRH6D38F

 2.2 ~ 100 6.7 X 6.7 X 4.0 Compliant

TRSI4010F

 1.5 ~ 22 4.0 X 4.0 X 1.0 Compliant

TRSI5040F

 1.0 ~ 47 5.0 X 5.0 X 4.0 Compliant

TRSI6045F

 1.0 ~ 1000 6.0 X 6.0 X 4.5 Compliant

TCRB10145F

 10 ~ 1500 10.10 X 10.10 X 4.50 Compliant







     MOLDED INDUCTOR
Image Series Inductance Range (µH) Package Size (mm) RoHS/Reach

TMPIC252012F

 0.22 ~ 2.2 2.5 X 2.0 X 1.2 Compliant

TMPIC04020F

 0.47 ~ 10 4.45 X 4.75 X 2.00 Compliant

TMPIC05030F

 0.47 ~ 10 5.0 X 5.5 X 3.0 Compliant

TMPIC07030F

 0.47 ~ 22 6.8 X 7.3 X 3.0 Compliant

TMPIT03020F

 0.47 ~ 10 3.2 X 3.7 X 2.0 Compliant

TMPIT05030F

 0.22 ~ 33 5.4 X 6.0 X 3.0 Compliant

TMPIT07030AF

 0.18 ~ 4.5 6.6 X 6.4 X 3.1 Compliant

TMPIT04020AF

 0.10 ~ 2.2 4.10 X 4.10 X 1.90 Compliant

TPI07030F

 0.10 ~ 47 6.8 X 7.3 X 3.0 Compliant

TPI07050F

 0.56 ~ 10 6.8 X 7.3 X 5.0 Compliant

TPI10040F

 0.36 ~ 68 10.3 X 11.5 X 4.0 Compliant

TPI13067F

 0.10 ~ 68 12.90 X 14.00 X 6.70 Compliant







     CERAMIC CHIP INDUCTOR
Image Series Inductance Range (µH) Package Size (mm) RoHS/Reach

TCFL161010MF

 0.47 ~ 2.2 1.6 X 1.0 X 1.0 Compliant

TCFL161010WF

 0.10 ~ 22 1.8 X 1.2 X 1.2 Compliant

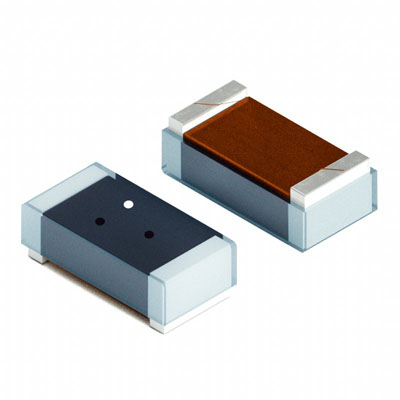

TCFL1206CF

 0.0068 ~ 1.8 3.6 x 2.2 x 1.63 Compliant

TCFL1008CF

 0.010 ~ 10.0 2.92 x 2.79 x 2.03 Compliant

TCFL0805CF

 0.0022 ~ 4.7 2.4 x 1.6 x 1.4 Compliant

TCFL0603CF

 0.0016 ~ 0.47 1.8 x 1.2 x 1.2 Compliant

TCFL0402CF

 0.001 ~ 0.12 1.19 x 0.65 x 0.66 Compliant


     FERRITE CHIP INDUCTOR
Image Series Inductance Range (µH) Package Size (mm) RoHS/Reach

TWL4532VF

 0.10 ~ 1000 4.5 X 3.2 X 3.2 Compliant



     COMMON MODE CHOKE

Image Series Impedance (Ω) Package Size (mm) RoHS/Reach

T4FC1210DF

 15 ~ 90 1.2 X 1.0 X 0.9 Compliant

T4FC2012F

 67 ~ 670 2.0 X 1.2 X 1.2 Compliant
